2018 CE Laboratory High Temperature Heat Treatment 1700C Box Type Lab Furnace

FOB Reference Price:Get Latest Price
US $1,200-3,600 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Classification:
Laboratory Heating Equipments
Brand Name:
Sutong furnace
Model Number:
ST-1700MX-I
Place of Origin:
Henan, China (Mainland)
Furnace chamber adiabatic material:
Alumina ceramic fiber
Heating elements:
U Type MoSi2 Rod
Temperature uniformity:
+/-1.C
Temperature controller:
30 segments programmable and PID automatic control
Chamber Size:
150x150x150mm
name:
Box Type Lab Furnace for Laboratory
Furnace shell:
double shells
Furnace cooling:
by air
Max. temperature:
1700.C
Rated power:
4KW
SupplyAbility
SupplyAbility:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
Thick plywood wooden cases,Lined with soft foam plastics.
Port
Zhengzhou/Qingdao/Tianjin/Shanghai
Lead Time :
Shipped in 25 days after payment

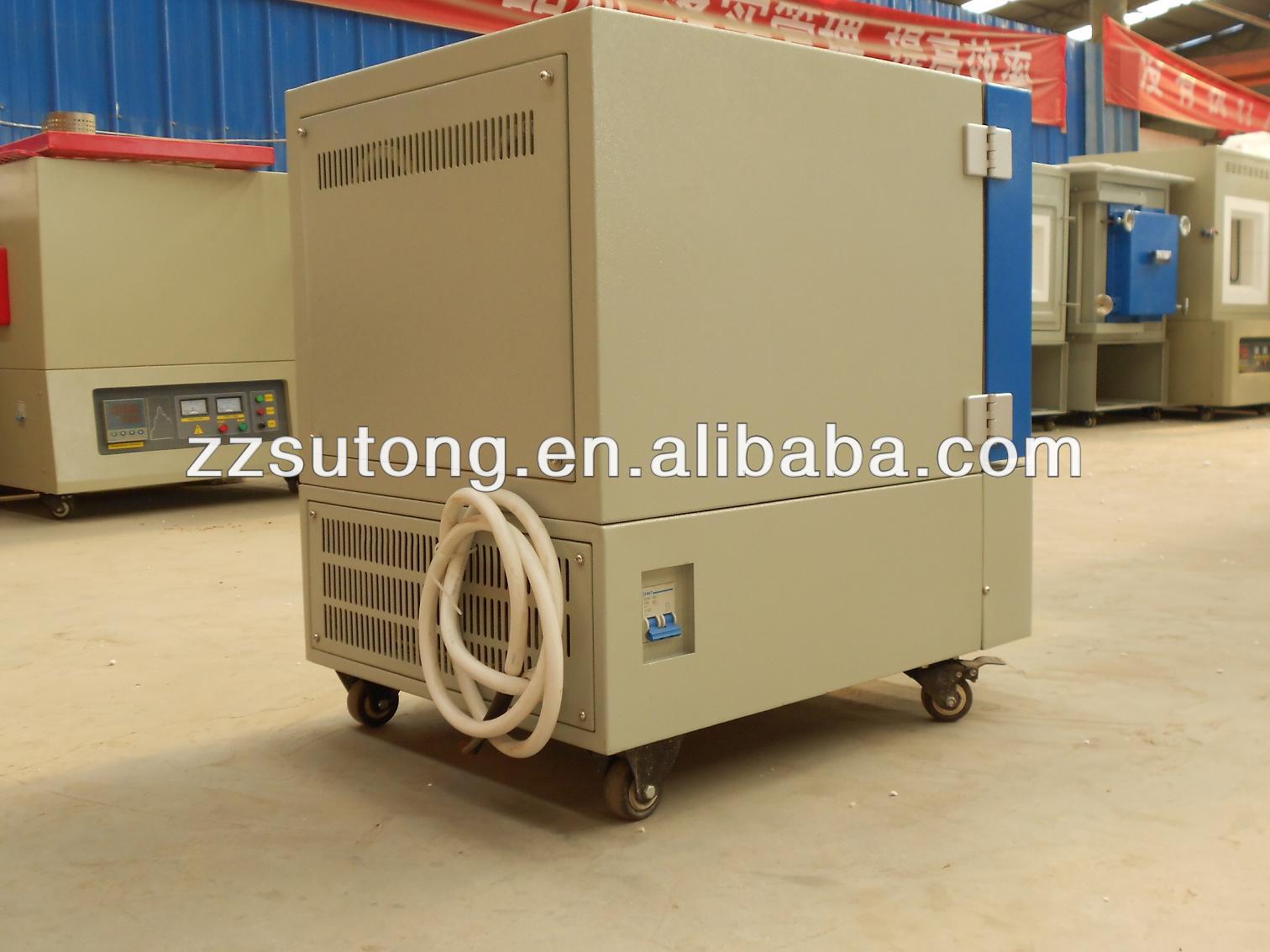

 Laboratory High Temperature Heat Treatment 1700C Box Type Lab Furnace



High Temperature Heat Treatment 1700C Box Type Lab Furnace



Applications:

1.Crystallize;
2.Sintering or Roasting or Forging or calcining;
3.Ashing;
4.Heat treating or Preheating;
5.Quench or Hardening or Austemper
6.Annealing or Tempering or Normalizing
7.melting or smelting
8.Synthesis and degradation or pyrolysis or decomposing

Box type laboratory high temperature lab furnace technical parameter :
Product name and modelST-1700MX-1 Box Type Muffle Furnace
Chamber size(WxHxD)150x150x150mm
Chamber insulation materialslightweight aluminum oxide Ceramic fiber
Maximum Temperature1700°C (Working time Not more than 3 hours.)
Working Temperature400-1600°C (justierbar, continuously Working)
Temperature controller way

Based on the microprocessor 30 segments programmable

and PID auto control

Heating Rate1--15°C/min (justierbar,)
Temperature accuracy+/-1°C
Sensor of measuring  TemperatureB type thermocouple
Heating elements  U Type MoSi2 Rod
Furnace shell structure  Double ventilation cooling structure
Cooling way  Fan cooling
Temperature display mode  Four Figure Liquid Crystal Display
Working powerAC 1-phase, 110-240 V 50/60Hz (User Choose any)
Rated power3.5KW
Packing Size(WxDXH)  480xW510xH760mm
Spare function

  Installed computer communication module and



Furnace with accessories :
